WS - Low Flare Top Shelf Handlebar System
WS - Low Flare Top Shelf Handlebar System

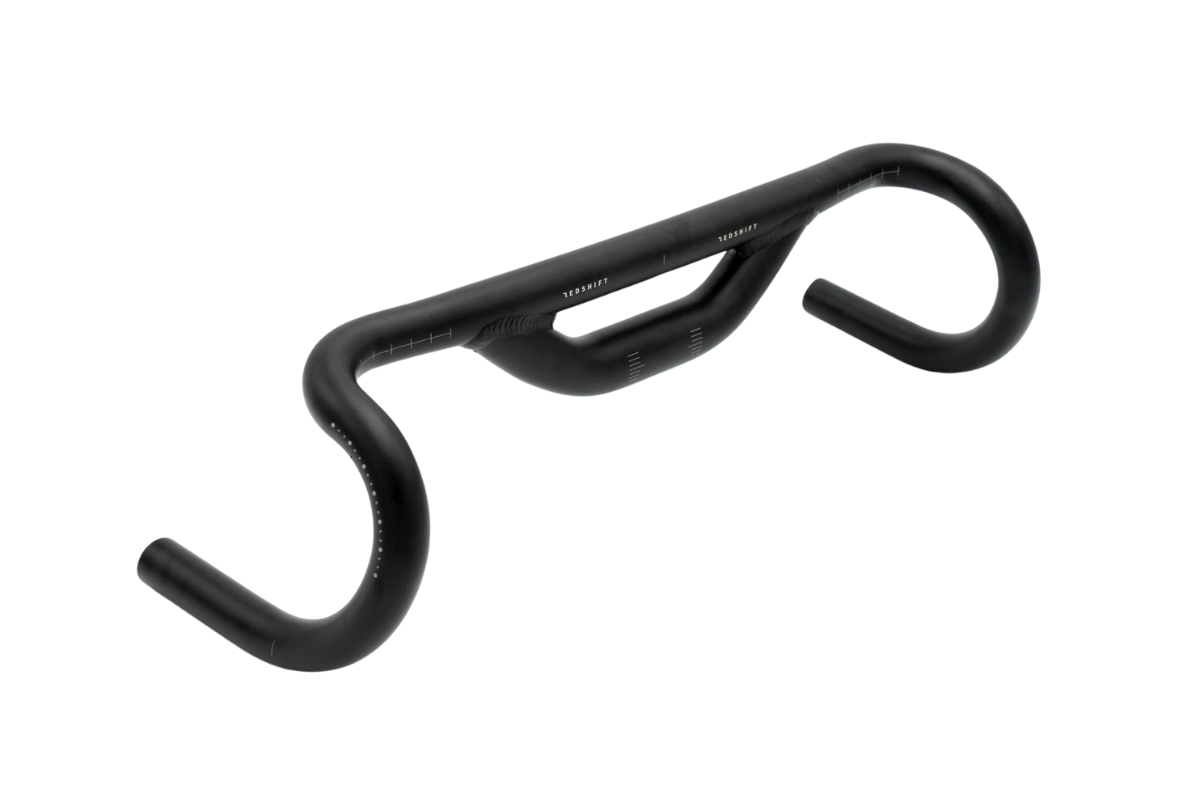

The perfect handlebar for all-day comfort and control, now with road style drops (10 deg flare versus the original 25 deg). The Top Shelf Low Flare Handlebar gives you an ultra-comfortable upright riding position with 50 or 70mm (2 or 2.75in) of rise, easy reach to the drops, and extensive bar space to mount anything you need for your on- and off-road adventures.
The patent-pending design features a unique double-bar construction, which allows for easy, secure mounting of bags and accessories. Configure the perfect set-up for anything from an afternoon gravel adventure to an epic multi-day bikepacking trip.
KEY Handlebar Features:

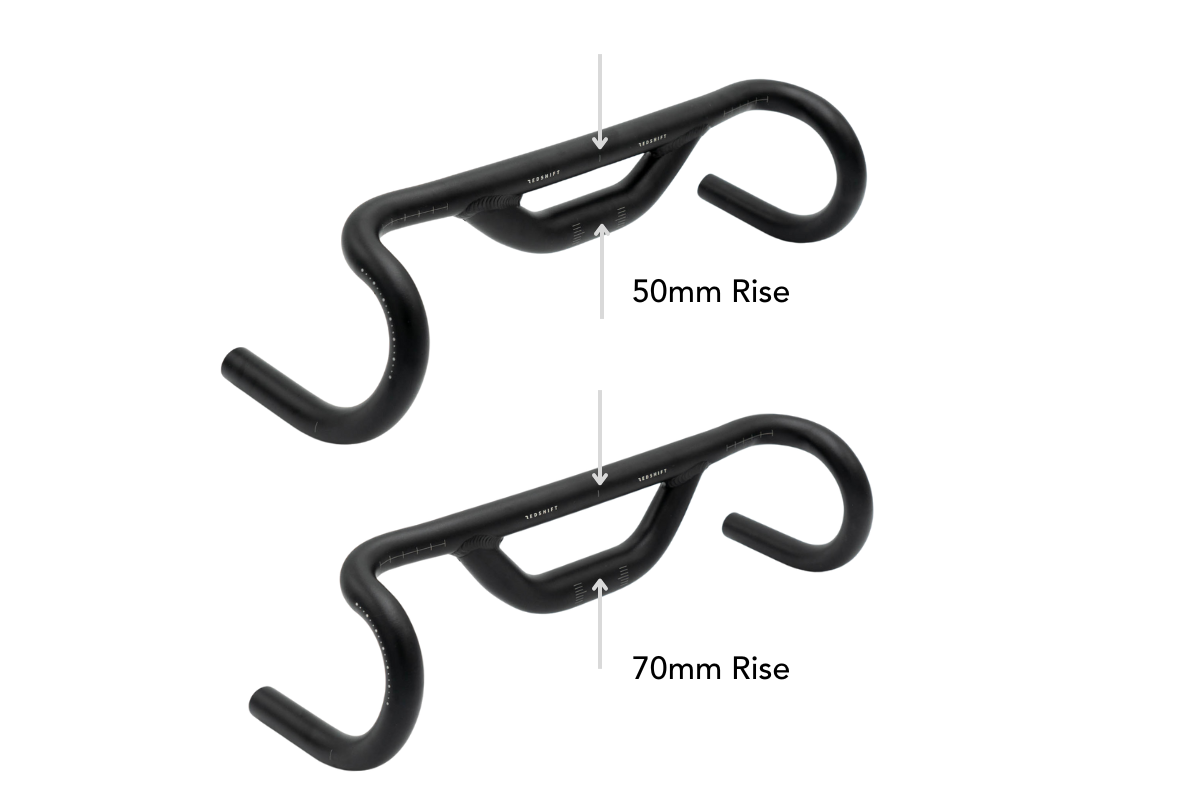

- RISE - 50 or 70mm (2 or 2.75in) of rise creates a more upright and comfortable riding position without the use of a highly angled stem or excessive headset spacers. This allows riders to achieve a more upright, relaxed fit while maintaining traditional drop-bar bike geometry.
- CONTROL - Take advantage of the drops. The higher positioning of the drops provides a comfortable and secure hand position, giving you control to navigate rough terrain and steep descents. This keeps your body weight centered, while reducing neck and back strain.

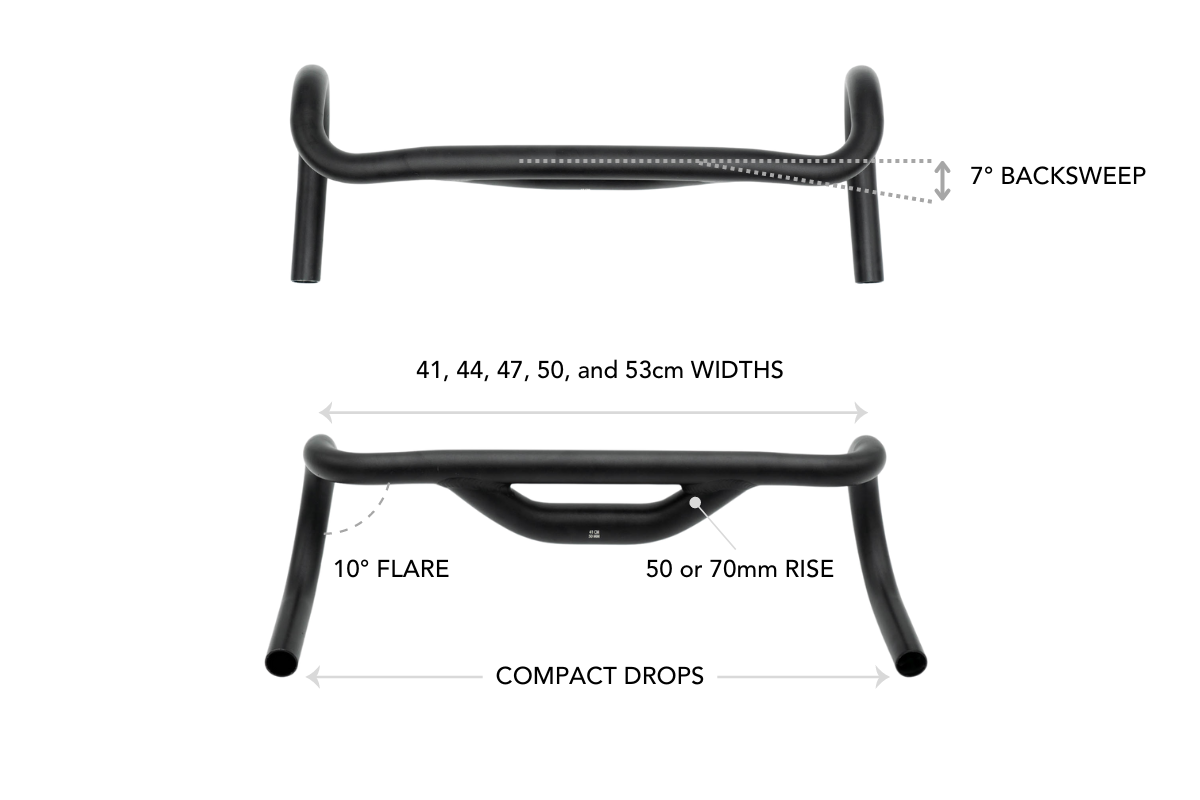

- BACKSWEEP - 7° degrees of backsweep orients the bar where your hands want to be. Whether you're on the flats, the hoods, or the drops, you’re getting an ergonomic position for your most epic gravel rides.
- ROAD STYLE FLARE - 10° degrees of flare and a compact drop means a stable, aerodynamic drop position that is actually comfortable enough to use on your longest road or gravel ride.
- FULL RANGE OF WIDTHS - 41, 44, 47, 50, and 53cm widths.
- STORAGE - the unique double-bar construction provides room for all of your bar-mounted accessories. Mount our custom-fitted Top-Shelf Handlebar Bag securely, without flopping around like they do on a standard handlebar.
- Perfect for road, gravel, bikepacking, and commuting.

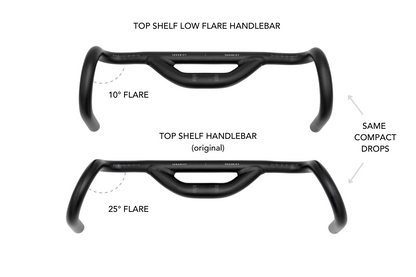

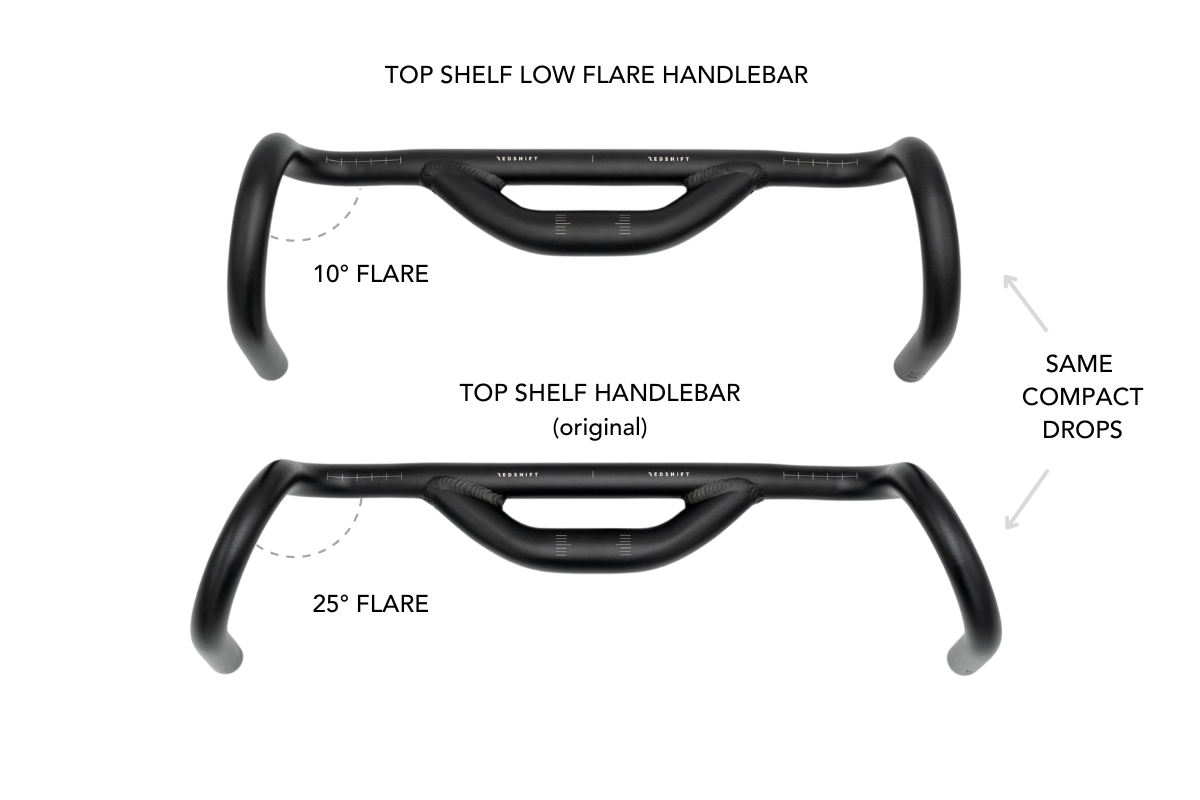

Why 10 degrees of Flare?
Because it's the right balance between classic dropbar shaping and the ergonomic + comfort advantages of flare. A small amount of flare on performance road bike bars is quickly becoming a very popular option for this very reason.
Handlebar Accessories

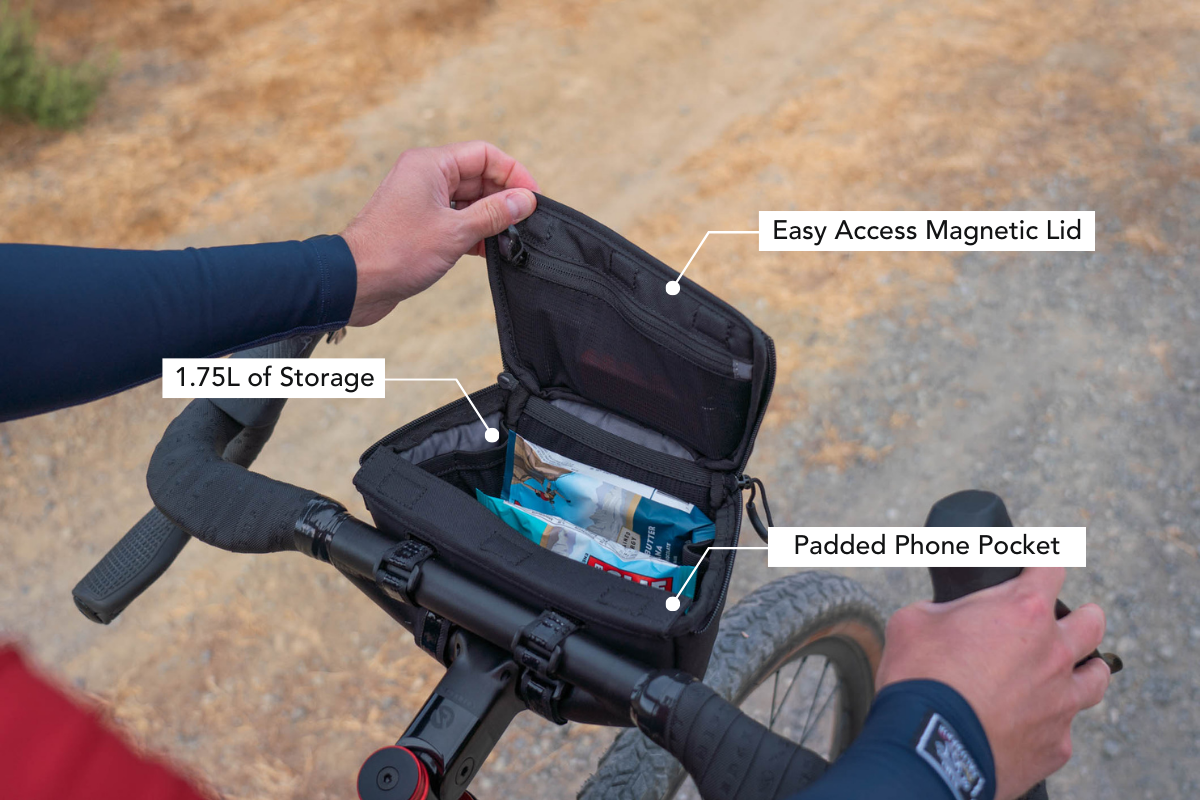

Looking for a storage solution that is made just for the Top Shelf then checkout the Top Shelf Handlebar Bag. A super secure1.75L handlebar bag with a dedicated phone pocket, single-hand access, and a magnetic top flap.

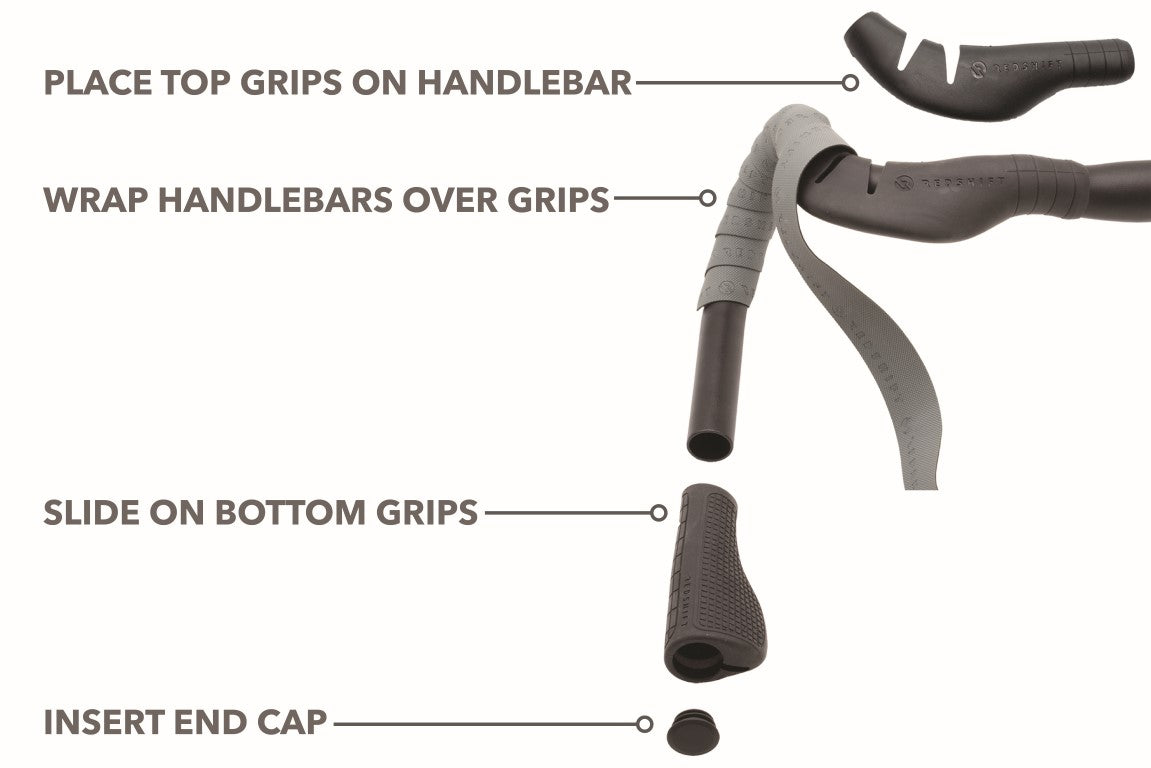

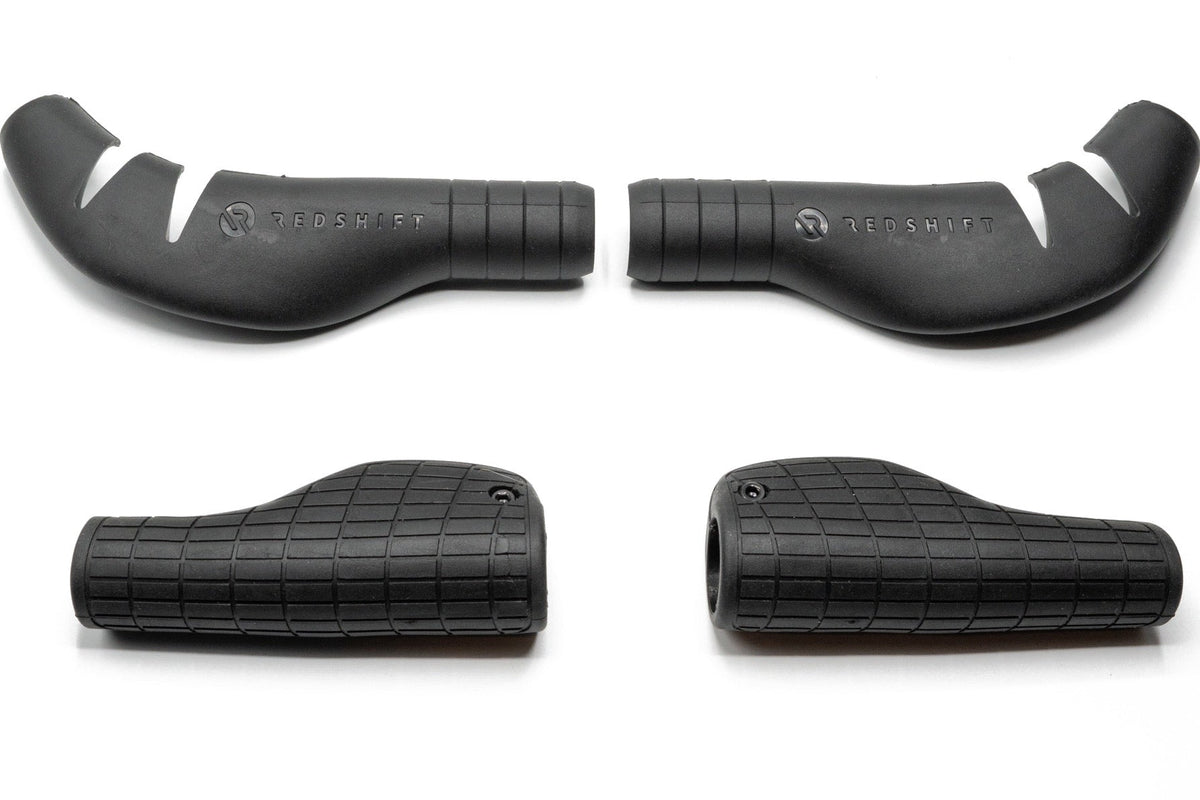

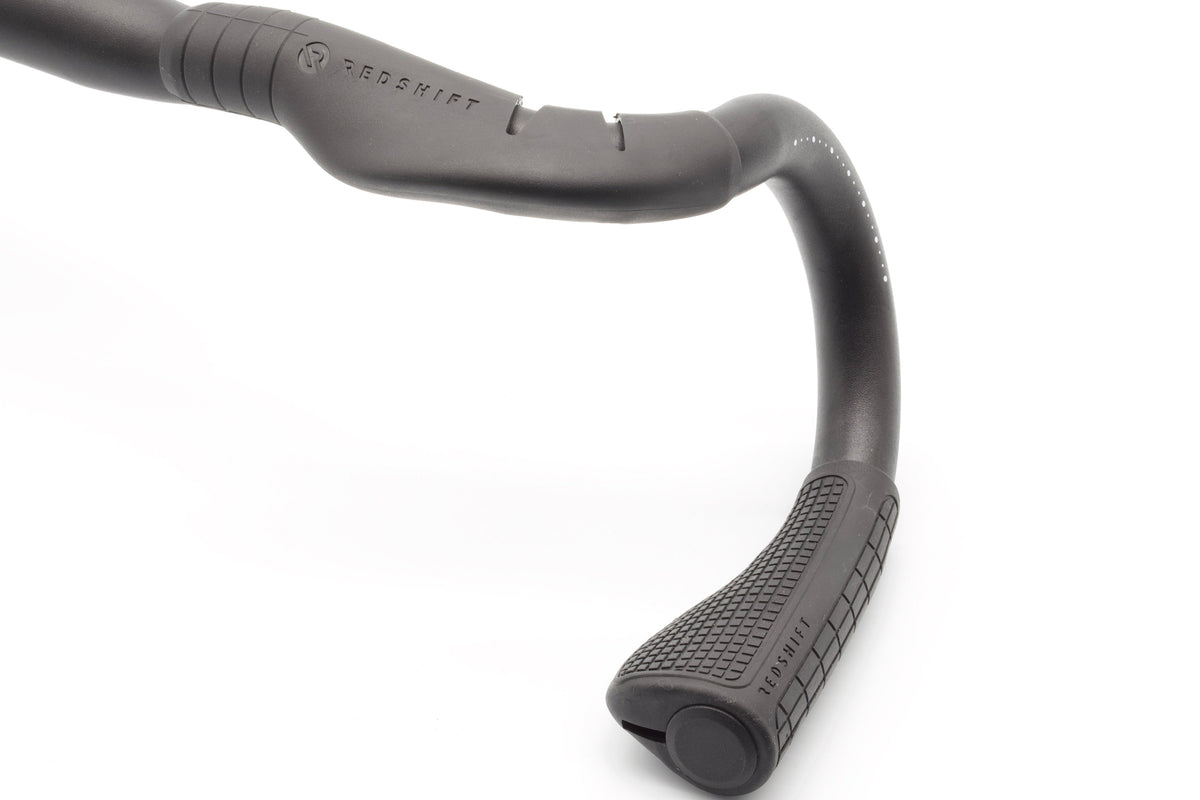

To get even more comfort and performance out of your Top Shelf Handlebar, add the ergonomic Cruise Control Grip System. The Top Grips provide an incredibly comfortable position at the tops by expanding the bar and giving you a wide area to rest your hands. And the Drop Grips give you an extra comfortable position while in the drops through an ergonomic style grip that helps spread load over your hands so you can stay in your tuck all day.

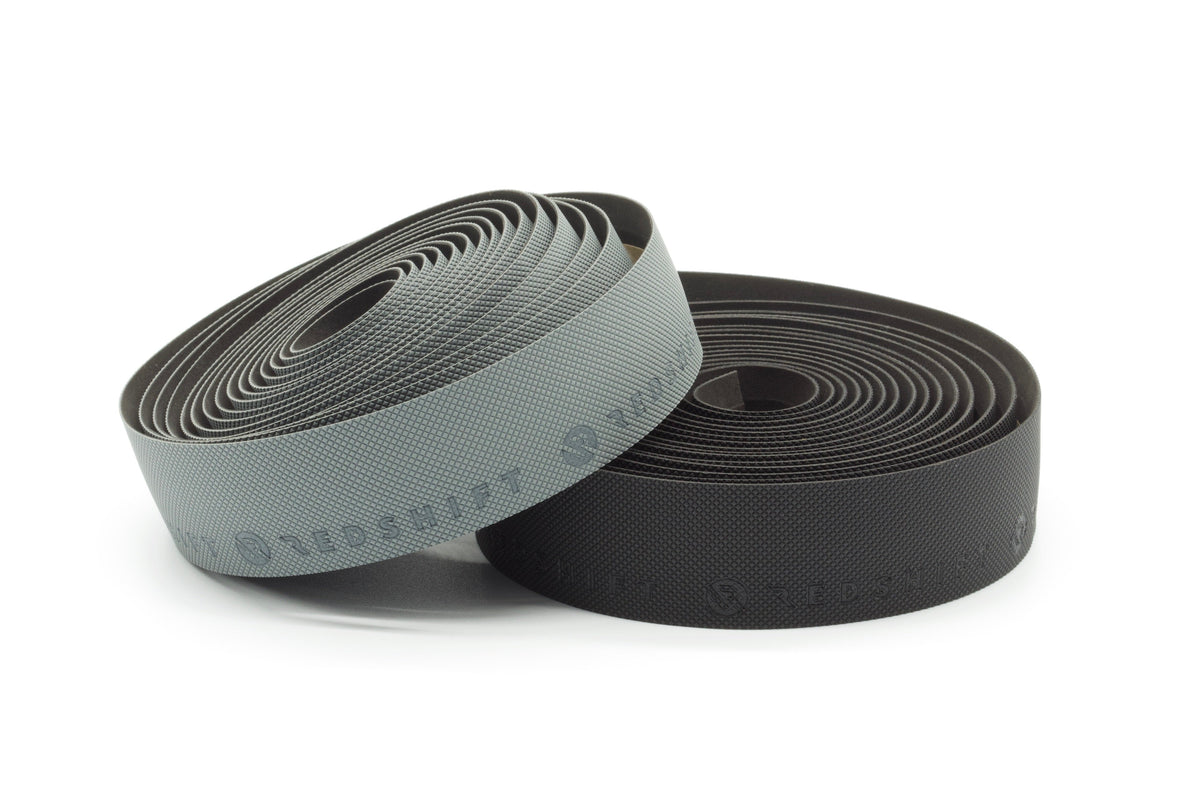

Top it all off with some of our Really Long Bar Tape which is specifically designed to be long enough to wrap even the widest gravel handlebar. Oh and it's super comfortable with just the right amount of grip.

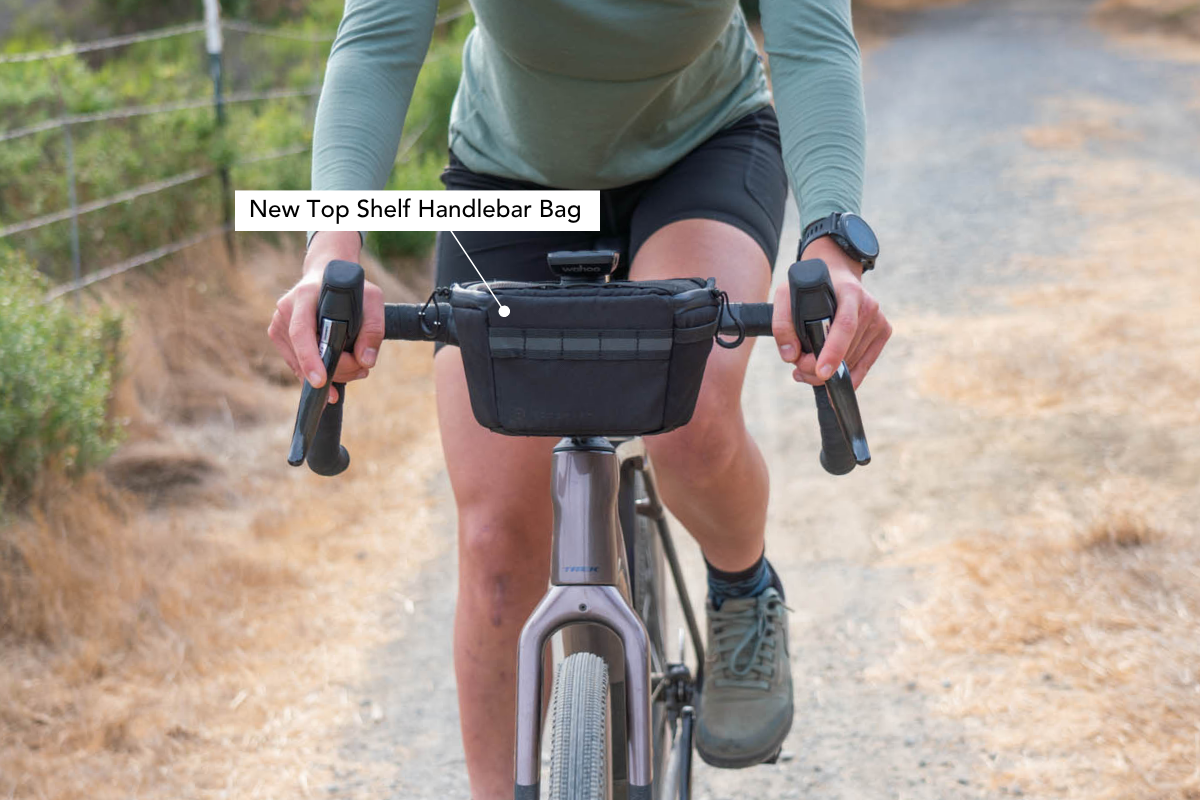

Finally, the new Top Shelf Handlebar Bag is custom-designed with dual straps to attach rigidly to the double-decker bar construction, and reinforced side panels support all of your gear without sagging or bouncing. The bag features a self-closing, magnetically secured top lid that is designed for easy single-handed access, even while riding. Add a bike computer mount (compatible with Garmin and Wahoo computers), that sits on top of the bag in an ideal location just in front of the stem.
Technical Specifications
Technical Specifications

Width 41 cm 44 cm 47 cm 50 cm 53 cm Weight (50 mm or 2 in version) 489 g 499 g 509 g 519 g 530 g Weight (70mm or 2.75in version) 508 g 519 g 531 g 545 g 558 g Sweep 7 deg 7 deg 7 deg 7 deg 7 deg Drop Flare 10 deg 10 deg 10 deg 10 deg 10 deg Drop 118 mm 118 mm 118 mm 118 mm 118 mm Reach 72 mm 70 mm 68 mm 65 mm 62 mm Clamp 31.8 mm 31.8 mm 31.8 mm 31.8 mm 31.8 mm Material 6061 T6 Aluminum Intended Use ASTM F2043 Class 2 - For on and off-road riding and drops less than 15cm (6").
| Product | Top Grips | Drop Grips |
| Weight | 94 g / pair | 144 g / pair |
| Length | 165mm (can be trimmed by 30 mm) | 120mm |
| Material | Kraton | Kraton |
| Product | Top Shelf Bag | add-on Computer Mount |
| Weight | 304 g | 21g |
| Capacity | 1.75L | N/A |
| Material | Cordura | 3D printed polycarbonate blend filled with carbon fiber |
FAQ
FAQ
Can I clamp to the upper cross bar on the TSHB?
Yes, the cross bar is designed so you can clamp accessories to it, or use it as an alternative stem clamping position. The diameter of the cross bar is 25.4mm so you will need to use a shim if your stem is the standard 31.8mm size.
If you would like to read more FAQ on the Top Shelf Handlebar Click Here.
Instructions
Instructions
Download Instructions (PDF):
Instructions - Top Shelf Handlebar
You can view instructions for the Grips on the Cruise Control Grips page here.
